Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance Sensor

Collision Avoidance Sensor

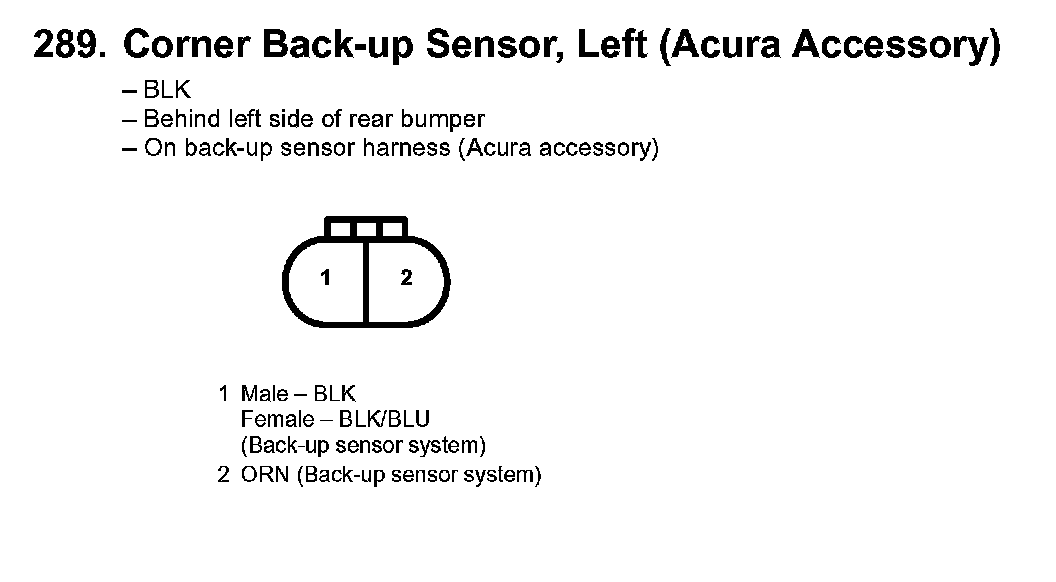

289. Corner Back-up Sensor, Left (Acura Accessory):

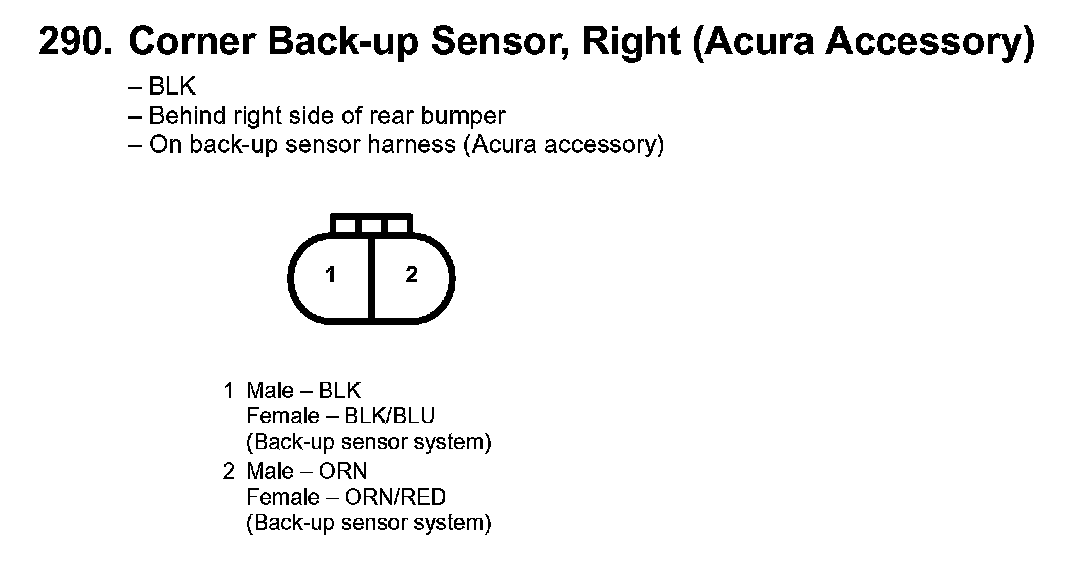

290. Corner Back-up Sensor, Right (Acura Accessory):

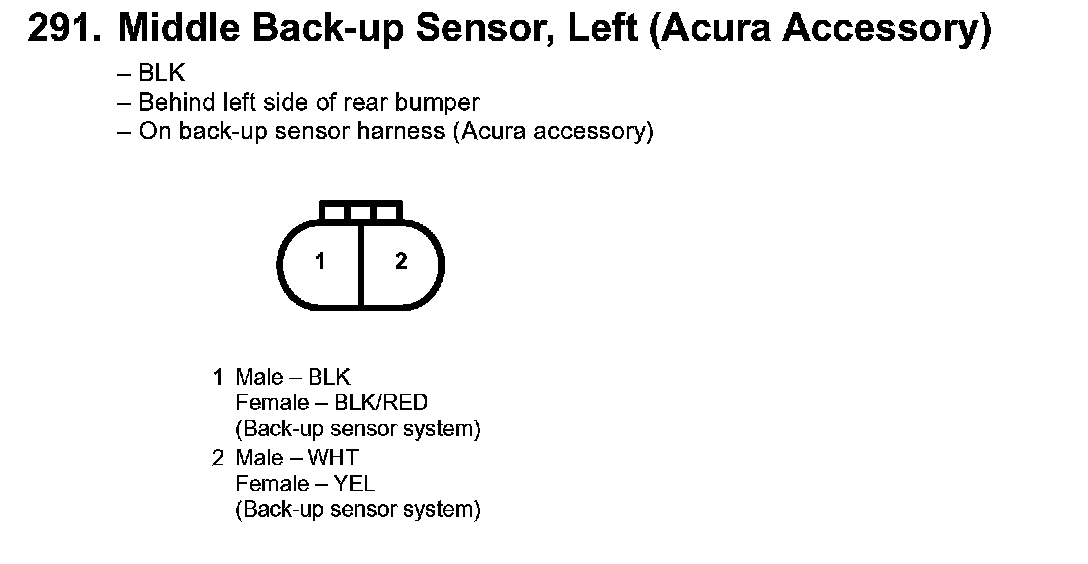

291. Middle Back-up Sensor, Left (Acura Accessory):

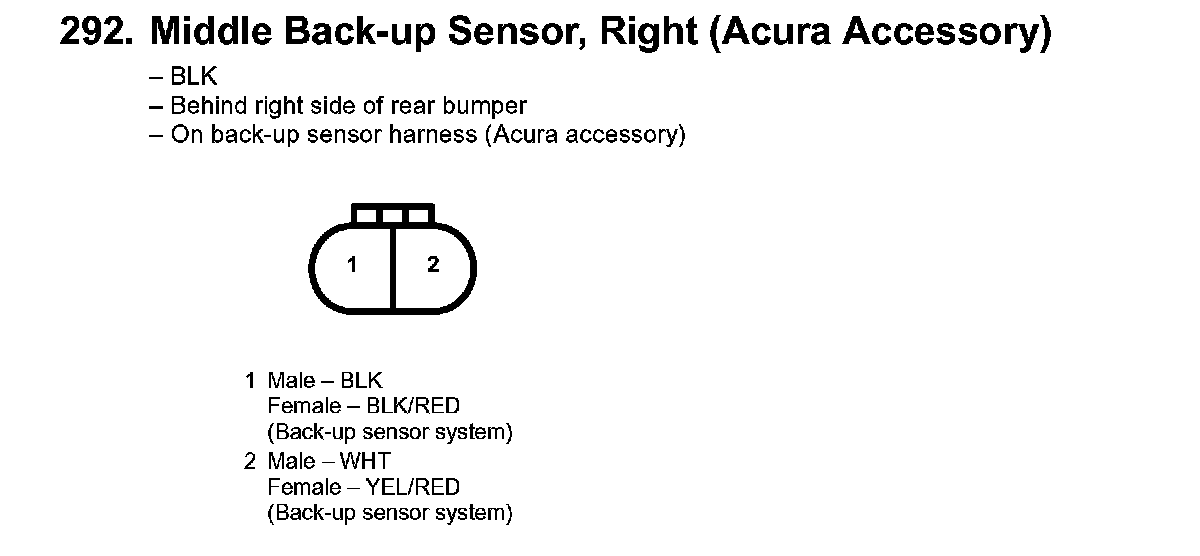

292. Middle Back-up Sensor, Right (Acura Accessory):

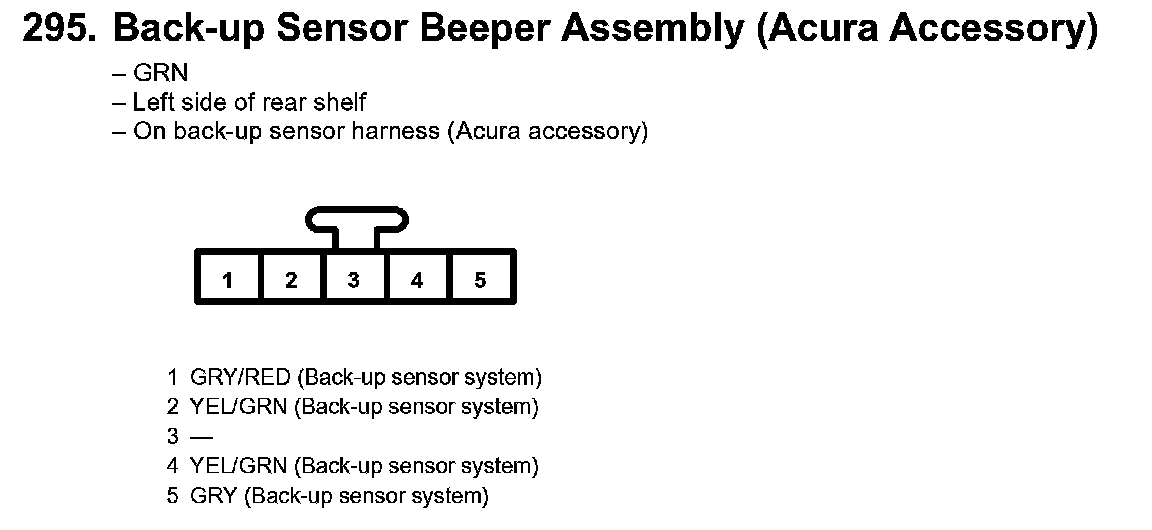

295. Back-up Sensor Beeper Assembly (Acura Accessory):
