Collision Avoidance Module
Collision Avoidance Module

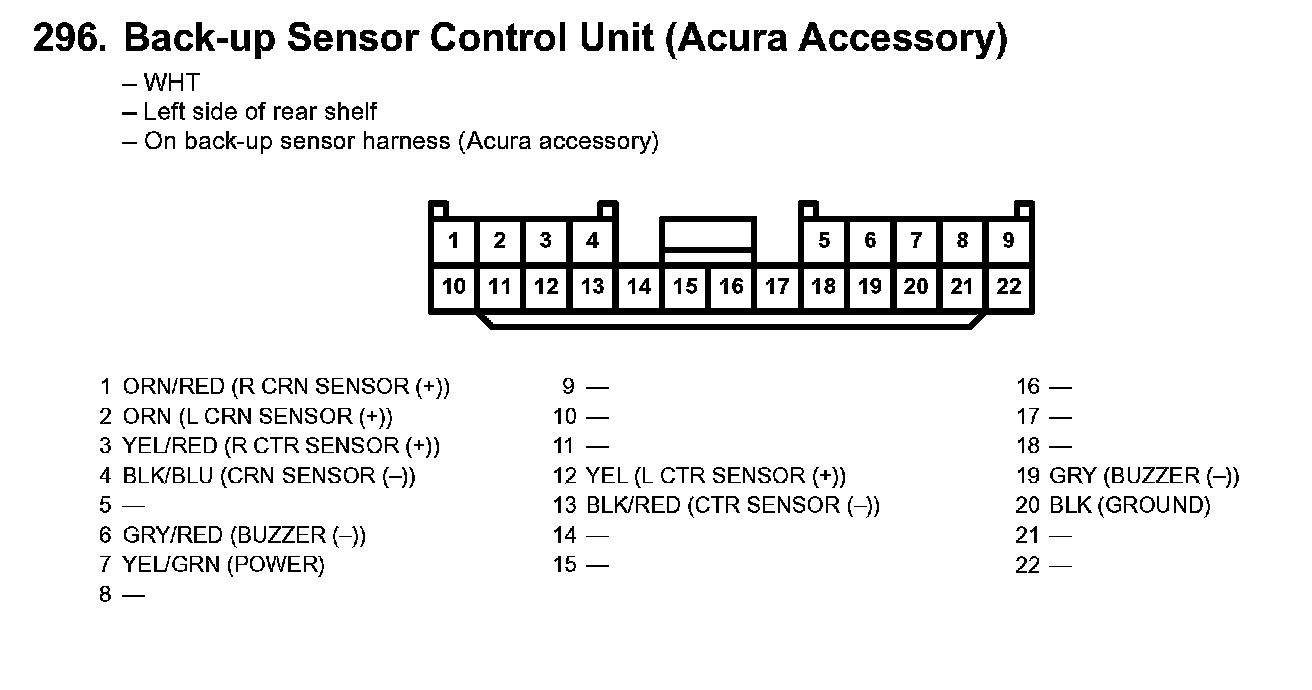

296. Back-up Sensor Control Unit (Acura Accessory):
