Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

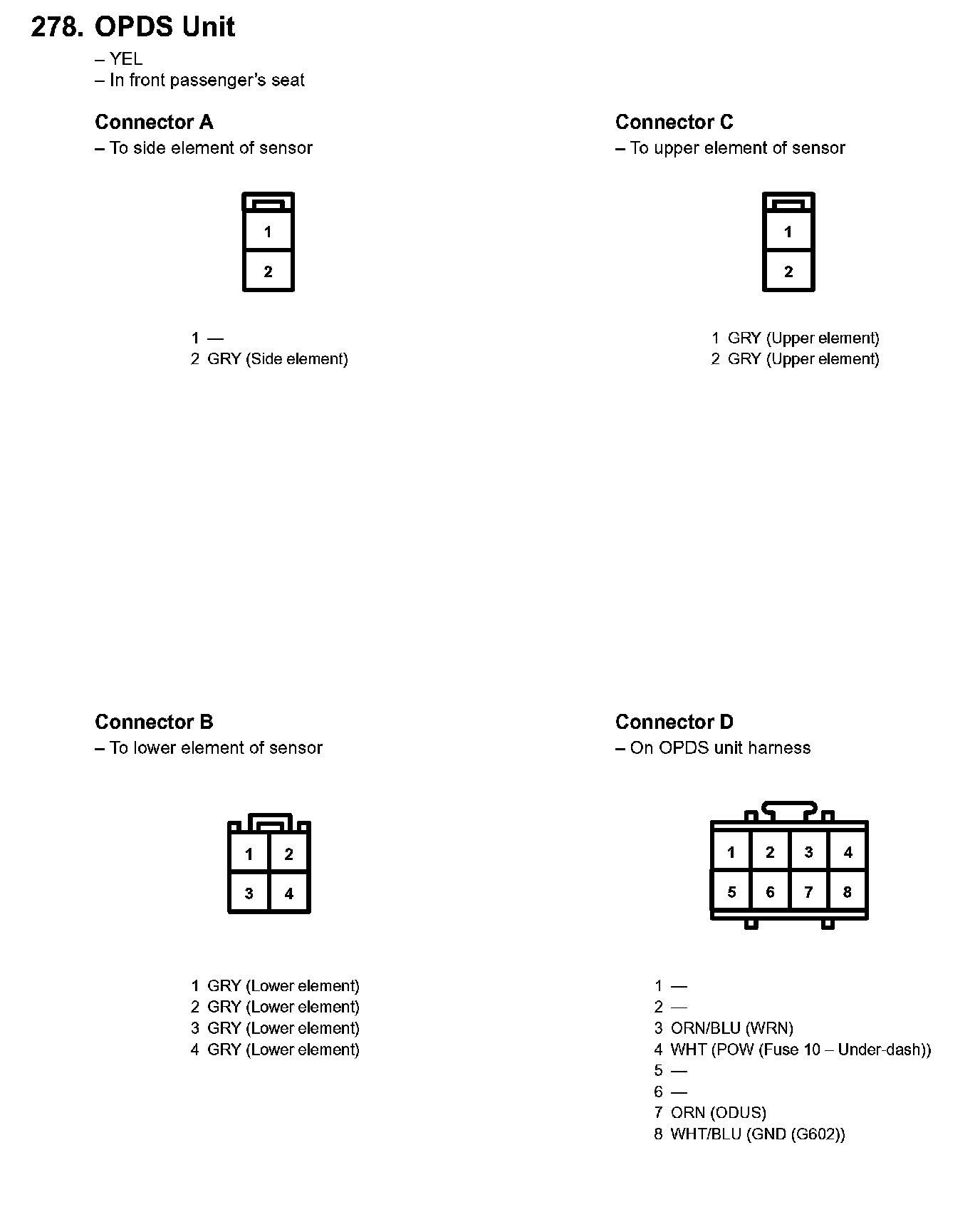

278. OPDS Unit:

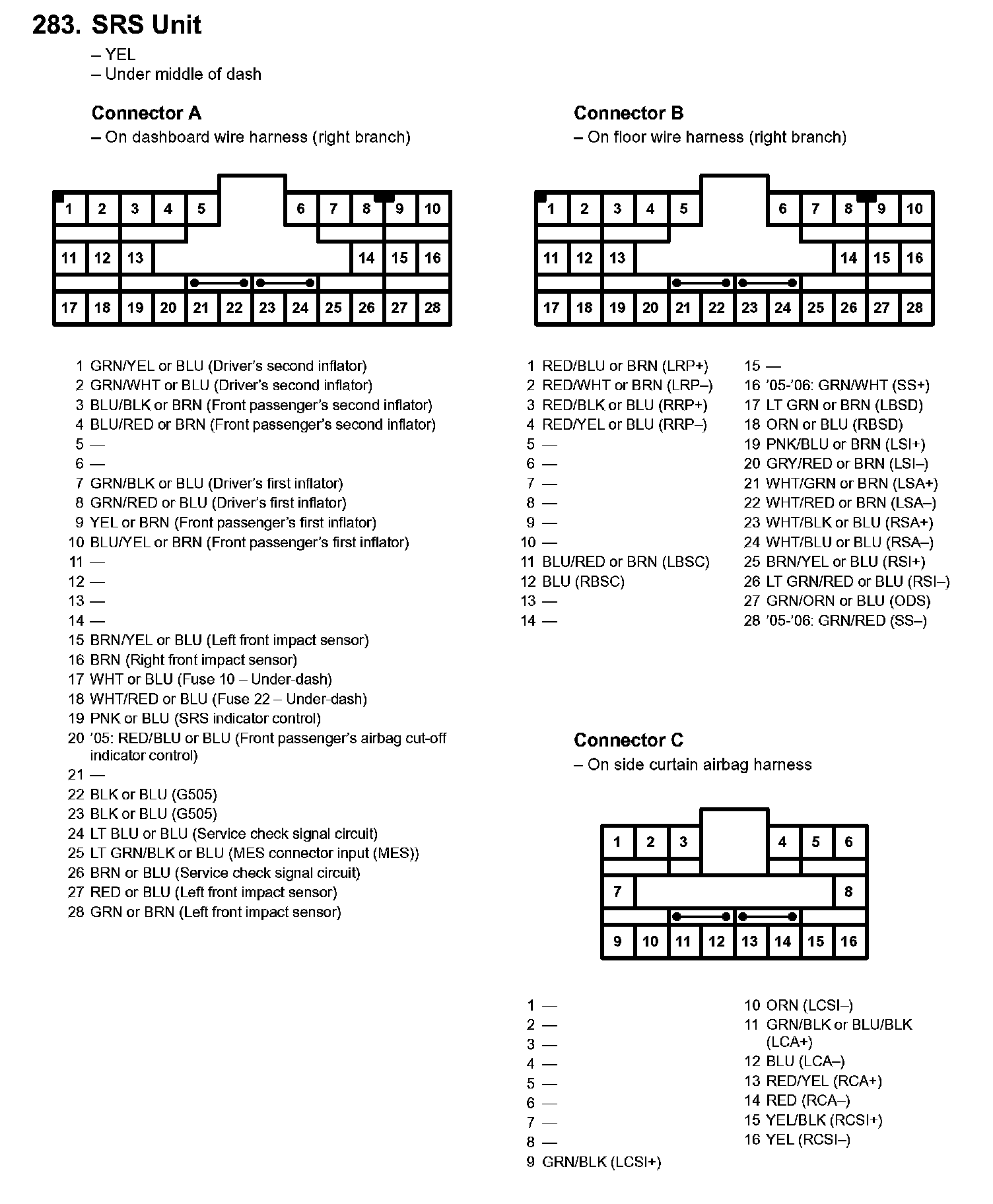

283. SRS Unit:
